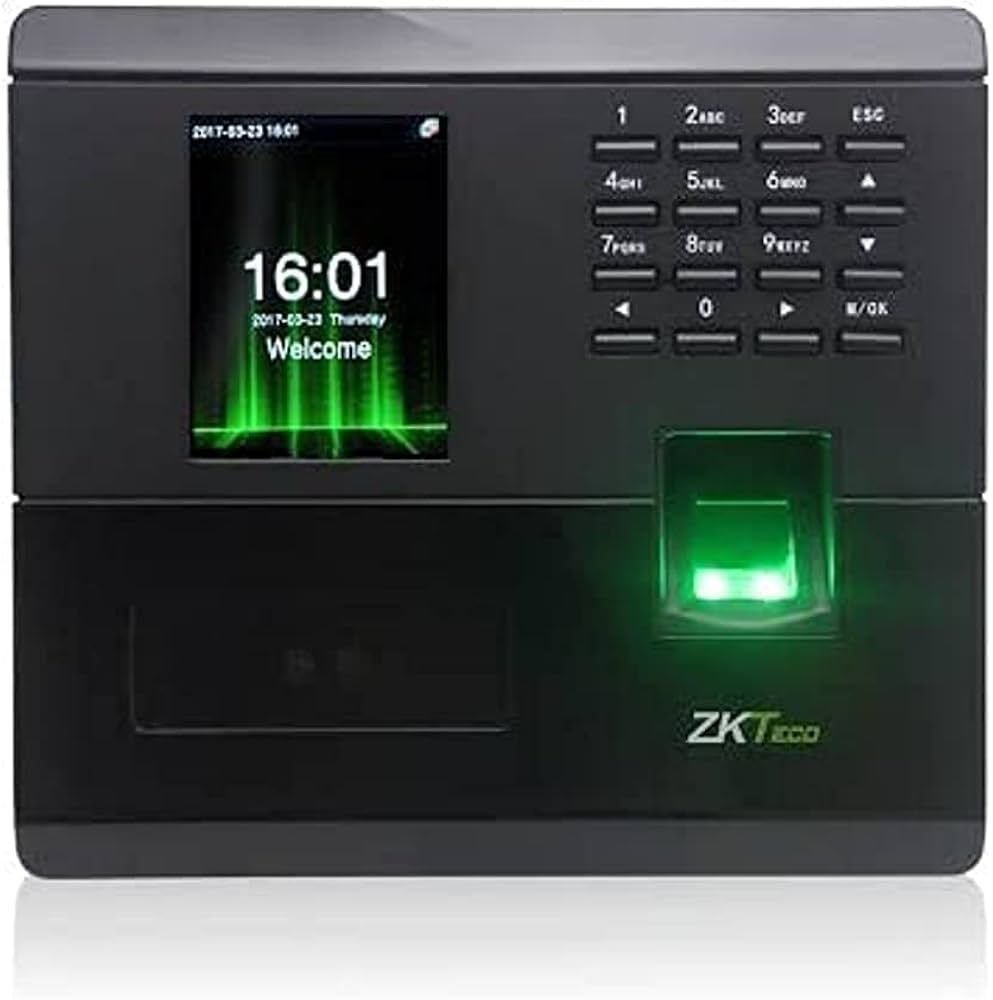

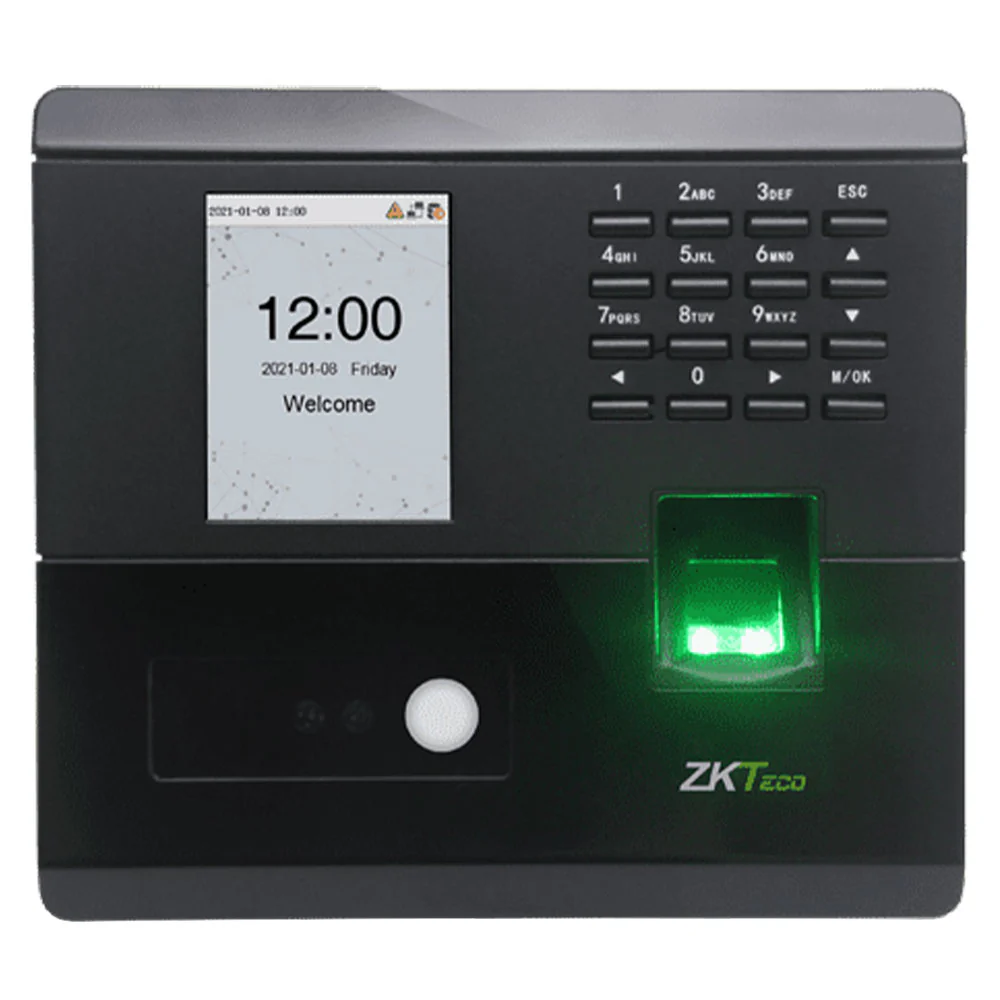

ZKTeco MB10-VL Visible Light Facial Recognition & Fingerprint Time Attendance Terminal

Elevate your organization's time and attendance management to a new level of precision and efficiency with the ZKTeco MB10-VL. This advanced device offers a comprehensive biometric solution, combining ease of use with powerful performance, making it the ideal choice for businesses seeking to streamline employee timekeeping processes and enhance security.

The MB10-VL incorporates cutting-edge Visible Light Facial Recognition technology, enabling fast (less than 1 second) and accurate user identification, even in varying lighting conditions. Thanks to its 1MP Binocular Camera and ZKLiveFace V3.5 algorithm, the device provides enhanced protection against photo or video spoofing attempts. In addition to facial recognition, the terminal also supports authentication via fingerprint (powered by ZKFinger V10.0 algorithm), ID Card, and password, offering maximum flexibility in verification methods.

The device runs on a 1GHz Dual-Core CPU, with 256MB RAM / 256MB Flash, and a Linux Operating System, ensuring stable and rapid performance. It features a 2.8-inch TFT screen that provides an intuitive and easy-to-navigate graphical user interface. With a substantial capacity for 800 faces, 800 fingerprints, 800 ID cards, and 150,000 transaction logs, the MB10-VL efficiently meets the needs of most businesses.

For enhanced integration, the terminal supports TCP/IP and USB Host communication, along with standard functions such as ADMS (Advanced Data Management System), DST (Daylight Saving Time), Self-service Query, Automatic Status Switch, and T9 Input. It also provides an access control interface to support third-party electric locks, door sensors, and exit buttons, making it a versatile solution not only for time attendance but also for basic door access control. Invest in the ZKTeco MB10-VL to achieve advanced and fully automated workforce management.

Key Specifications

• Display: 2.8-inch TFT Screen

• User Capacity: 800

• Face Capacity: 800

• Fingerprint Capacity: 800

• ID Card Capacity: 800

• Log Capacity: 150,000

• Communication: TCP/IP, USB Host

• Standard Functions: ADMS, DST, Self-service Query, Automatic Status Switch, T9 Input, Camera, 9-digit User ID, Multiple Verification Methods, Bell Scheduling, SSR

• Hardware: 1GHz Dual-Core CPU, 256MB RAM/256MB Flash, 1MP Binocular Camera

• Operation System: Linux

• Access Control Interface: 3rd Party Electric Lock, Door Sensor, Exit Button

• Biometrics Algorithm: ZKLiveFace V3.5 / ZKFinger V10.0

• Facial Recognition Speed: $\le 1s$

• Power Supply: 5V 2A DC

• Working Humidity: 20% to 80%

• Working Temperature: 0∘C to 45∘C

• Dimensions (WHD): $168.0\times 151.5\times 31.7\text{ (mm)}$
