Xprinter XP-502A Bluetooth Thermal Receipt Printer

Product Overview

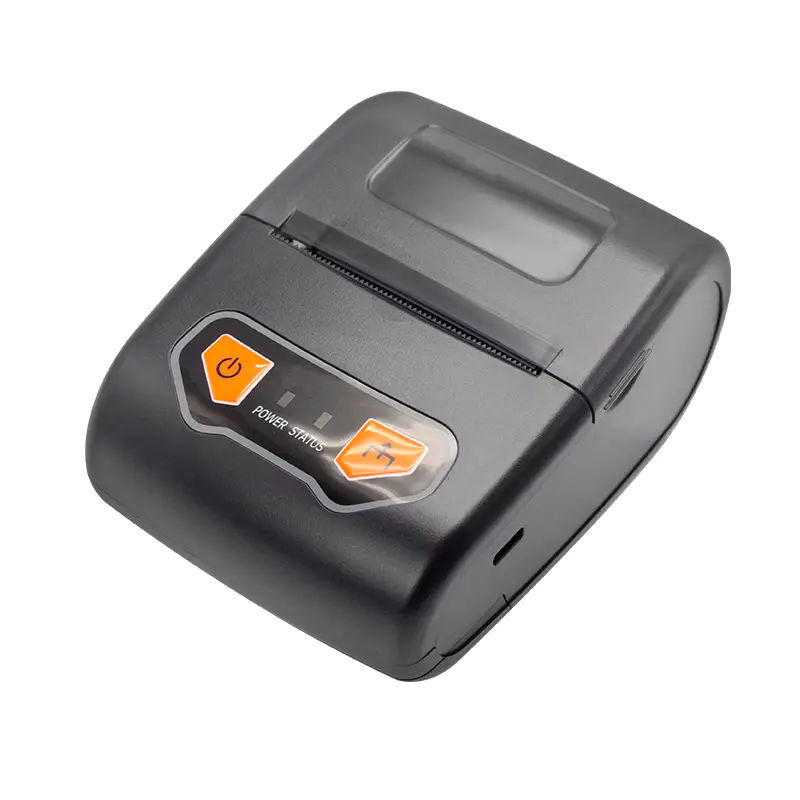

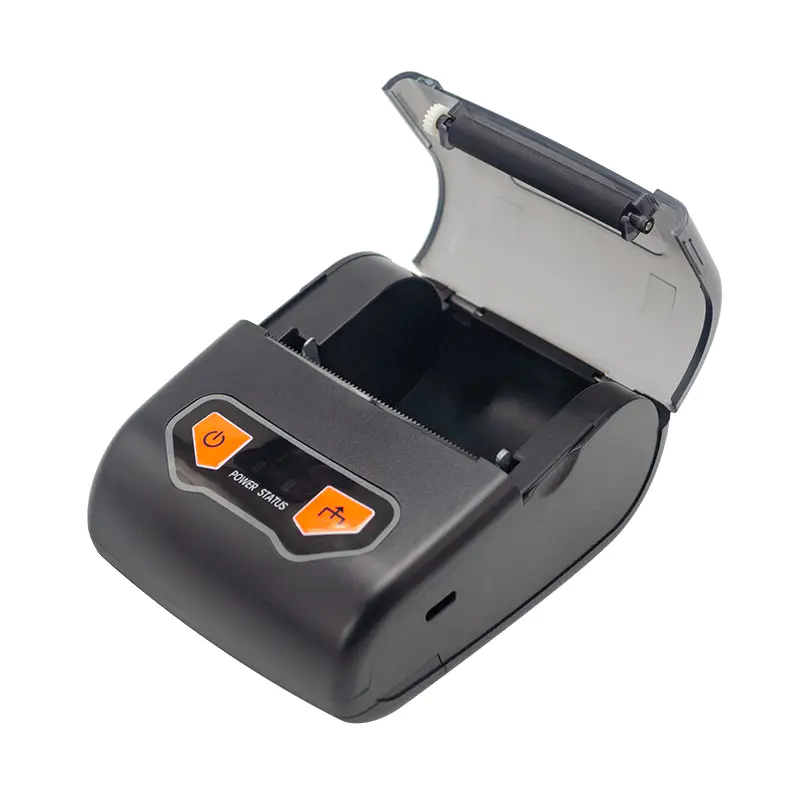

The Xprinter XP-502A is a portable direct-thermal receipt printer. The official model is XP-P502A. It is designed for 58 mm mobile receipt printing with USB and Bluetooth connectivity and support for Windows, Linux, Android and iOS.

Key Features

• Direct thermal printing: no ink or ribbon required.
• Portable design: 3.7V 2600mAh battery.
• Print speed: up to 70 mm/s.
• Connectivity: USB and Bluetooth.
• Barcode printing: common 1D symbologies plus QR Code and PDF417.
• Compatibility: Windows, Linux, Android and iOS.
• Command set: ESC/POS.
• Arabic support: Arabic is listed in the supported extended character tables.

Technical Specifications

• Official model: XP-P502A.
• Printing Method: Direct Thermal.
• Paper Width: 58 mm.
• Print Width: 48 mm.
• Line Spacing: 3.75 mm, adjustable by commands.
• Maximum Print Speed: 70 mm/s.
• Interfaces: USB + Bluetooth.
• Printhead Life: 50 km.
• CPU Storage: 128KB.
• NV Flash: 4MB.
• Emulation: ESC/POS.
• Rotation: 0° / 90° / 180° / 270°.

Supported Barcodes

1D: UPC-A, UPC-E, JAN13 (EAN13), JAN8 (EAN8), CODE39, ITF, CODABAR, CODE93 and CODE128.

2D: QR Code and PDF417.

Physical, Power and Environment

• Dimensions: 124 × 91.01 × 58.44 mm.
• Weight: 0.237 kg.
• Battery: 3.7V / 2600mAh.
• Charging Input: DC 5V / 1A.
• Operating Environment: 0 to 45°C, 10% to 80% RH, non-condensing.
• Storage Environment: -10 to 60°C, up to 90% RH, non-condensing.

Who Is It Suitable For?

Suitable for retail, restaurants, coffee shops, ticketing, mobile POS and other workflows that require 58 mm receipt printing over USB or Bluetooth.

Before You Buy

• Confirm that your application uses 58 mm receipt rolls and that the 48 mm printable width fits your receipt layout.
• If you plan to use Bluetooth, verify that your POS application supports Bluetooth printing with this type of printer.
• Confirm ESC/POS support when integrating with custom software.
• The battery capacity is 2600mAh, with no fixed operating time specified, so a guaranteed number of working hours should not be assumed.
• If you require 80 mm receipt paper, this model is not suitable because it is designed for 58 mm paper.
