Portable printer XP-P323B Barcode & Receipt Printer

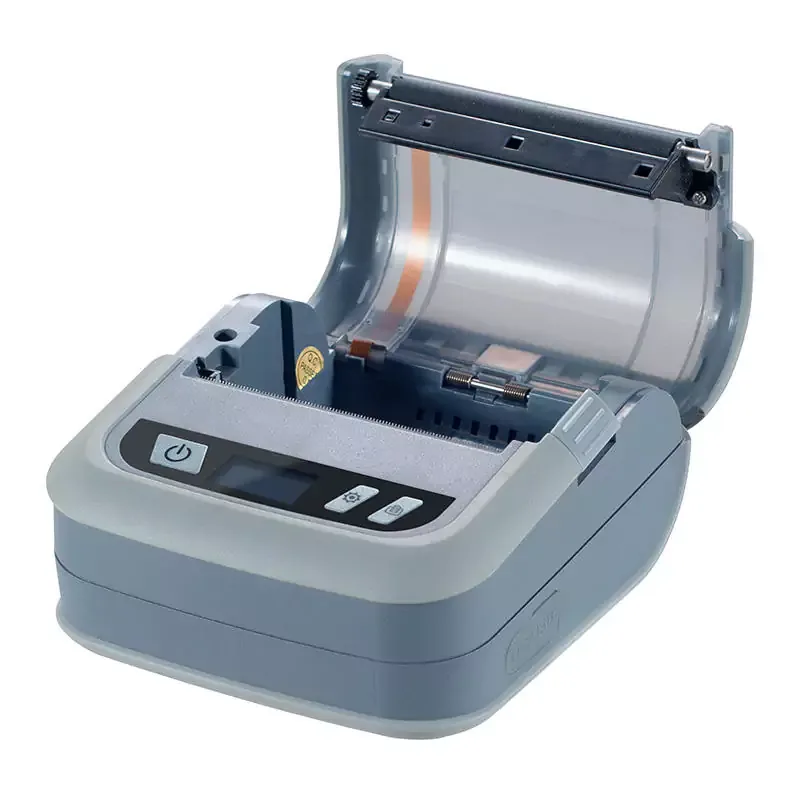

Xprinter XP-P323B Portable Bluetooth Printer

Product Overview

The Xprinter XP-P323B is a portable direct-thermal printer designed for receipts, barcodes and labels. It is suitable for mobile POS, logistics, retail and ticketing applications, with 203 DPI resolution, print speeds up to 70 mm/s and a maximum print width of 72 mm.

Key Features

• Receipt and label printing: supports continuous, gap and black-mark media.
• Portable operation: 7.4V 2500mAh battery.
• Wired and wireless connectivity: USB + Bluetooth, with USB + WiFi configuration also available.
• OLED display: available for printer status and menu navigation.
• Multiple command languages: TSPL-EZ (EPL, ZPL), DPL, CPCL and ESC/POS.
• 1D and 2D barcode printing: supports QR Code, PDF417, DataMatrix, Maxicode and common 1D formats.
• Multiple sensors: gap, print-head-open, black-mark and paper-end sensors.

Technical Specifications

• Model: XP-P323B.
• Printing Method: Direct Thermal.
• Resolution: 8 dots/mm - 203 DPI.
• Real Time Clock: Standard.
• Maximum Print Speed: 70 mm/s.
• Maximum Print Width: 72 mm.
• Maximum Print Length: 1778 mm.
• Media Type: Continuous / Gap / Black Mark.
• Media Width: 20-76 mm.
• Media Thickness: 0.06-0.08 mm.
• Media Length: 10-1778 mm.
• Maximum Roll Diameter: 50 mm.
• Processor: 32-bit RISC CPU.
• Memory: 8MB Flash + 8MB SDRAM.
• Memory Expansion: Micro SD reader up to 4GB.

Supported Barcodes

1D: Code128 A/B/C, Code128UCC, EAN128, Interleaved 2 of 5, Code39, Code93, EAN-13, EAN-8, Codabar, POSTNET, UPC-A, UPC-E, MSI, PLESSEY, China Post, ITF14, EAN14, Code11, TELPEN, PLANET, Code49, Deutsche Post Identcode, Deutsche Post Leitcode and LOGMARS.

2D: DataMatrix, Maxicode, PDF417 and QR Code.

Physical, Power and Environment

• Dimensions: 124 × 108 × 61 mm.
• Weight: 357.3 g.
• Power Supply: AC 100-240V input, DC 9V/2A output.
• Battery: 7.4V / 2500mAh.
• Operating Environment: 5 to 40°C, 25% to 85% RH, non-condensing.
• Storage Environment: -40 to 60°C, 10% to 90% RH, non-condensing.

Who Is It Suitable For?

Suitable for delivery services, field sales, retail, restaurants, coffee shops, ticketing and any workflow that needs portable receipt or label printing up to 72 mm wide.

Before You Buy

• Confirm that your media width is between 20 and 76 mm and that the 72 mm maximum print width fits your receipt or label layout.
• The store product is listed as the Bluetooth version; if you require WiFi, confirm the required configuration before ordering.
• Confirm that your software supports the command language you need, such as ESC/POS for receipts or TSPL/ZPL/EPL/DPL/CPCL for labels.
• The battery capacity is 2500mAh, but no fixed operating time should be assumed because runtime varies with print density, connectivity and usage.
• The maximum roll diameter is 50 mm, so verify your roll size before purchase.
