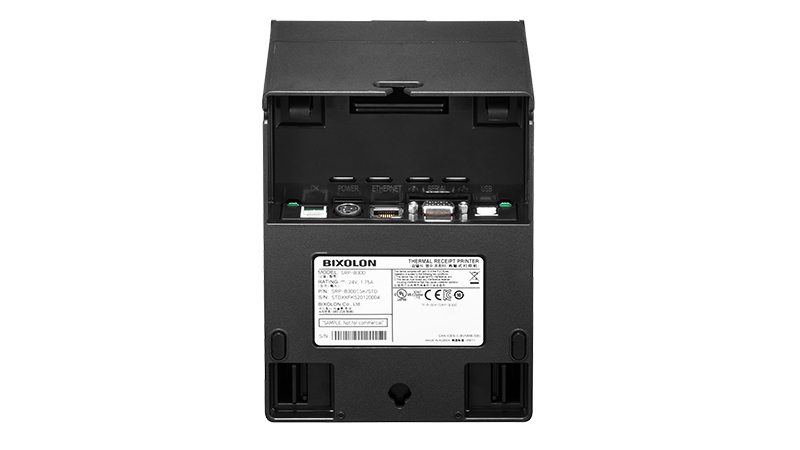

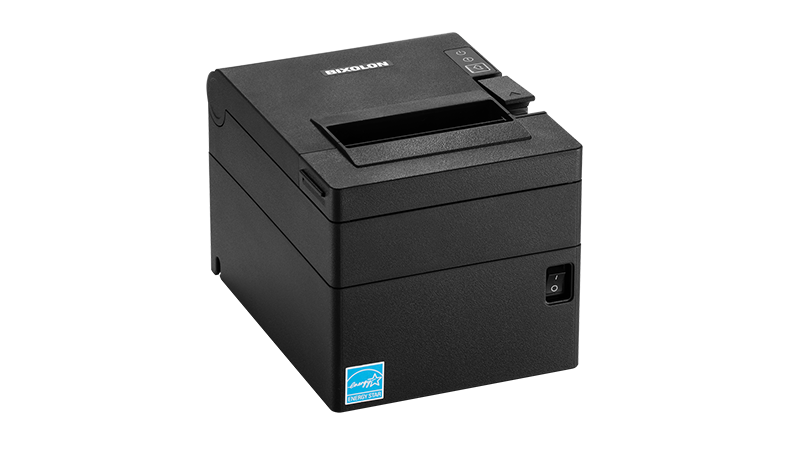

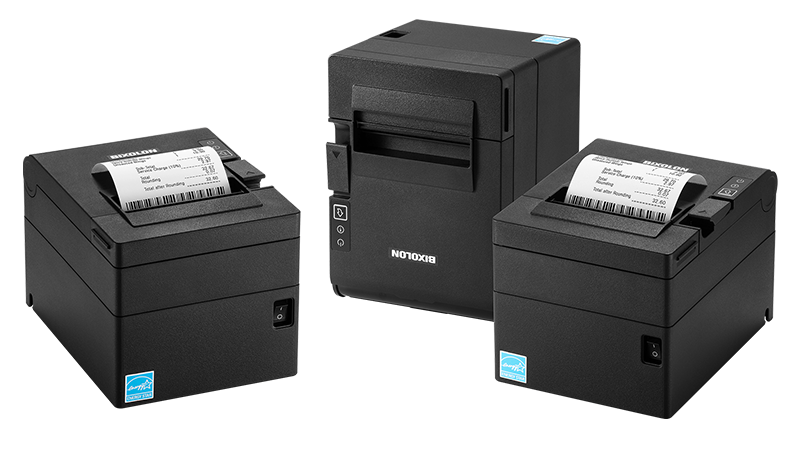

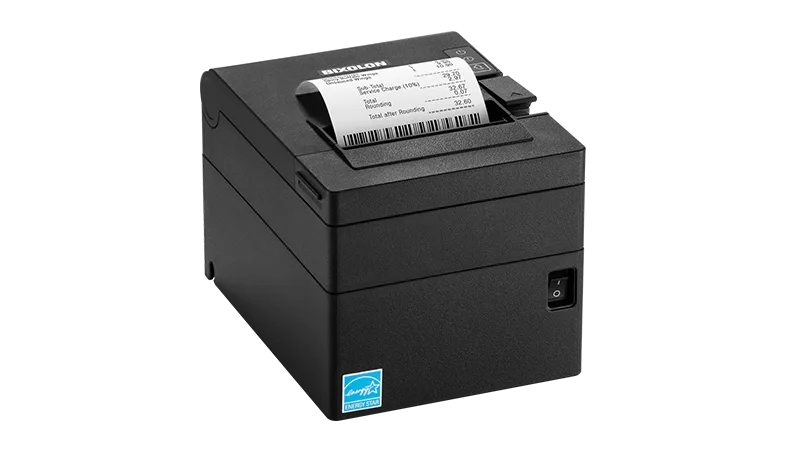

bixolon SRP-B300 thermal receipt printer

BIXOLON SRP-B300 Network Thermal Receipt Printer

Product Overview

The BIXOLON SRP-B300 is a thermal receipt printer rated for print speeds up to 200 mm/s at 203 DPI. It supports 79.5±0.5 mm paper with a 72 mm print width and includes an auto-cutter rated for up to 1,000,000 cuts. The current store configuration is the network version with USB + Ethernet + Serial.

Key Features

• Thermal receipt printing.
• 203 DPI resolution (8 dots/mm).
• Print speed up to 200 mm/s.
• 72 mm print width.
• 79.5±0.5 mm paper roll width.
• Auto-cutter rated for up to 1,000,000 cuts.
• Printhead life up to 100 km.
• USB + Ethernet + Serial on the current store configuration.
• 4KB receiving buffer.
• Two cash-drawer kick-out ports with a Y-type cable.

Technical Specifications

• Model: SRP-B300.
• Printing Method: Thermal printing.
• Resolution: 203 DPI (8 dots/mm).
• Maximum Print Speed: 200 mm/s.
• Print Width: 72 mm.
• Roll Width: 79.5±0.5 mm.
• Default Characters per Line: 48 (Font A), 64 (Font B), 64 (Font C).
• Receiving Buffer: 4KB.
• Interface in Current Store Configuration: USB + Ethernet + Serial.
• Cash Drawer Kick-out: 2 ports with Y-type cable.
• Power Supply Input: 100–240VAC.
• Frequency: 50/60Hz.
• Power Supply Output: 24VDC.
• Operating Temperature: 0 to 40°C.
• Storage Temperature: -20 to 60°C.
• Operating Humidity: 10%–80% RH.
• Storage Humidity: 10%–90% RH.
• Printhead Life: 100 km.
• Auto-cutter Life: 1,000,000 cuts.

Applications and Compatibility

Suitable for POS counters, restaurants, cafes and retail environments that need receipt printing over a local network, while retaining direct USB connectivity when required.

Who Is It Suitable For?

Suitable for stores and branches that need a network receipt printer that can be shared within the work environment, especially restaurant, retail and cashier installations.

Before You Buy

• The current store configuration is USB + Ethernet + Serial.
• Confirm your local network and POS software are configured for Ethernet printing and printer IP setup.
• Official paper width is 79.5±0.5 mm and print width is 72 mm.
• The official maximum print speed is 200 mm/s; actual speed can vary with data transmission speed and command combinations.
• The general model specification lists USB, Ethernet and Serial interfaces; this does not mean every interface is present on every configuration. This listing describes the current store configuration with USB + Ethernet + Serial.
