G480E Barcode and Label Printe

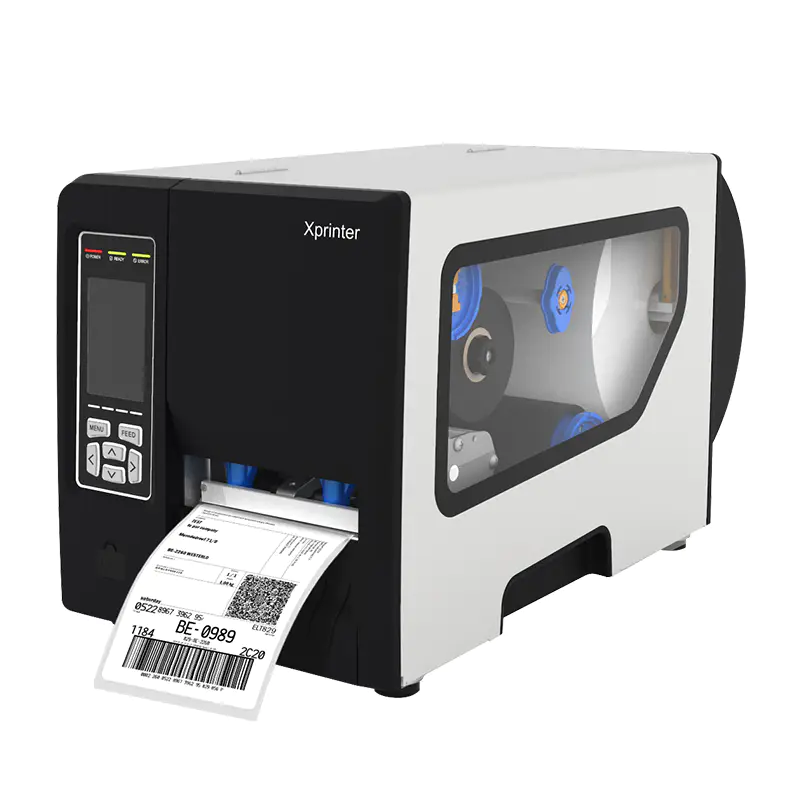

Xprinter XP-G480E – 4-Inch Industrial Barcode and Label Printer

Product Overview

The Xprinter XP-G480E is designed for demanding barcode and label printing. It supports both Thermal Transfer and Direct Thermal printing at 300 dpi, with speeds up to 203 mm/s and a maximum print width of 104 mm.

Our stocked version includes USB + RS-232 Serial + LAN and a 3.5-inch LCD with 320×480 resolution.

Key Features

• 300 dpi resolution.
• Thermal Transfer + Direct Thermal.
• Up to 203 mm/s.
• 104 mm maximum print width.
• 128MB RAM + 128MB Flash.
• 3.5-inch LCD.
• TSPL / ZPL / EPL / DPL emulation.
• Media roll up to 203 mm OD.
• Ribbon length up to 600 m.
• Our version: USB + RS-232 Serial + LAN.

Technical Specifications

• Resolution: 300 dpi.
• Print Method: Thermal Transfer / Direct Thermal.
• Memory: 128MB RAM / 128MB Flash.
• Max Print Width: 104 mm.
• Max Print Speed: 8 ips / 203 mm/s.
• Media Sensors: Movable Black Mark + Movable Gap.
• Emulation: TSPL / ZPL / EPL / DPL.
• Interfaces in our version: USB + RS-232 Serial + LAN.
• Display: 3.5-inch LCD, 320×480 pixels.
• SD Card Slot: Standard.
• Media Width: 20–120 mm.
• Media Length: 10–889 mm.
• Max Media Roll OD: 203 mm.
• Media Core ID: 25.4 mm.
• Media Thickness: 0.06–0.254 mm.
• Media Types: Continuous / Gap / Black Mark / Fan-fold / Perforated.
• Ribbon OD: 91 mm.
• Max Ribbon Length: 600 m.
• Ribbon Width: 20–110 mm.
• Ribbon Core ID: 25.4 mm.
• Operating Temperature: 5–40°C.
• Operating Humidity: 25–85% non-condensing.
• Dimensions: 504 × 257 × 297 mm.
• Weight: 11 kg.

Barcodes and Software

Supports 1D symbologies including Code 39, Code 93, Code 128, Codabar, EAN, UPC and GS1 DataBar, plus 2D formats including PDF417, Maxicode, DataMatrix, QR Code and Aztec. Drivers are listed for Windows, Linux, Mac, Android and Chrome OS, with SDK support for Windows/Linux, Android and iOS.

Who Is It Suitable For?

Suitable for warehouses, factories, shipping operations and packaging lines that need high-volume 4-inch barcode and label printing with large media rolls and ribbons up to 600 m.

Before You Buy

• Our stocked version includes USB + RS-232 Serial + LAN only.
• Maximum print width is 104 mm even though media width can reach 120 mm.
• For Thermal Transfer printing, choose ribbon width within the supported 20–110 mm range.
• Confirm media roll and core dimensions before purchase.
