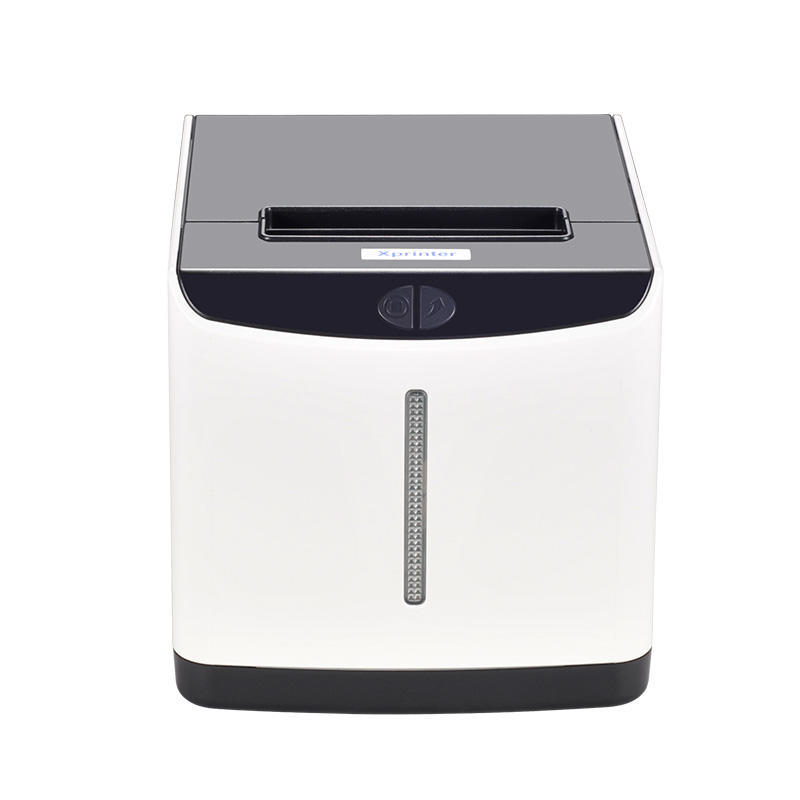

Xprinter XP-Q371U Barcode and Receipt Printer

Product Overview

The Xprinter XP-Q371U combines label/barcode printing and receipt printing in one compact desktop printer. It uses direct thermal printing at 203 DPI, reaches up to 127 mm/s in label mode and 180 mm/s in receipt mode, and provides a maximum print width of 76 mm. This store version uses USB connectivity.

Key Features

• Supports both label-print and receipt-print modes.
• Direct thermal printing with no ink or ribbon required.
• 203 DPI resolution.
• Up to 127 mm/s in label mode and 180 mm/s in receipt mode.
• Maximum print width of 76 mm.
• Supports 20–80 mm media width.
• Maximum roll diameter of 83 mm.

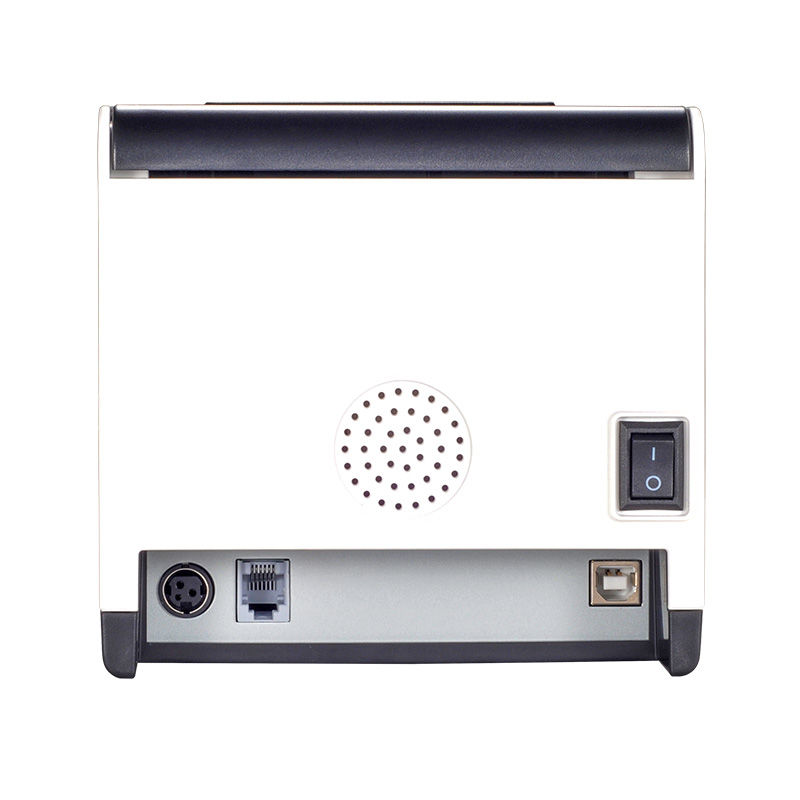

• USB interface.
• 4MB RAM and 4MB Flash.
• Missing-paper alarm function.
• IAP online upgrade support.
• Supports 1D and 2D barcodes including QR Code, PDF417 and Data Matrix.
• TSPL emulation in label mode and ESC/POS in receipt mode.

Technical Specifications

• Model: XP-Q371U.
• Print Modes: Label / Receipt.
• Printing Method: Direct Thermal.
• Resolution: 203 DPI.
• Label Print Speed: up to 127 mm/s.
• Receipt Print Speed: up to 180 mm/s.
• Maximum Print Width: 76 mm.
• Media Type: Thermal roll paper / Thermal adhesive paper.
• Media Width: 20–80 mm.
• Maximum Roll Diameter: 83 mm.
• Media Inner Diameter: 25–38 mm.
• Paper Exit Method: Tear-off.
• Media Thickness: 0.06–0.19 mm.
• Memory: 4MB RAM + 4MB Flash.
• Interface: USB.
• Printhead Temperature Detection: Thermistor.
• Printhead Position Detection: Micro Switch.
• Emulation: TSPL for labels / ESC/POS for receipts.
• Dimensions: 183 × 140 × 132.5 mm.
• Weight: 0.9 kg.
• Printhead Life: 50 km.
• Power Input: DC 24V / 2.5A.
• Operating Environment: 5 to 45°C, 10%–80% RH.
• Storage Environment: -40 to 55°C, up to 93% RH.
• Listed Operating Systems: Windows / Android / iOS.

Supported Barcodes

1D: CODE128, EAN128, ITF, CODE39, CODE39C, CODE39S, CODE93, EAN13, EAN13+2, EAN13+5, EAN8, EAN8+2, EAN8+5, CODABAR, POSTNET, UPC-A, UPCA+2, UPCA+5, UPCE, UPCE+2, UPCE+5, MSI, MSIC, PLESSEY, ITF14, EAN14.

2D: PDF417, QR Code and Data Matrix.

Applications and Compatibility

Suitable for product, pricing, warehouse and shipping labels as well as POS receipts, with the appropriate print mode and command language selected in the software.

Who Is It Suitable For?

Suitable for stores, supermarkets, warehouses, restaurants, cafes and POS counters that need one USB printer for both labels and receipts.

Before You Buy

• This store version uses USB only.
• Confirm your label software supports TSPL or your receipt software supports ESC/POS, depending on use.
• Confirm media width is between 20 and 80 mm and that the layout fits the maximum 76 mm print width.
• This is a direct-thermal printer and requires compatible thermal paper or thermal labels.
• Paper output is tear-off; no automatic cutter is listed for this model in the official source.
• The listed operating systems are Windows, Android and iOS; confirm driver and application compatibility before purchase.
