2D Industrial Wired Barcode Scanner XB-D50

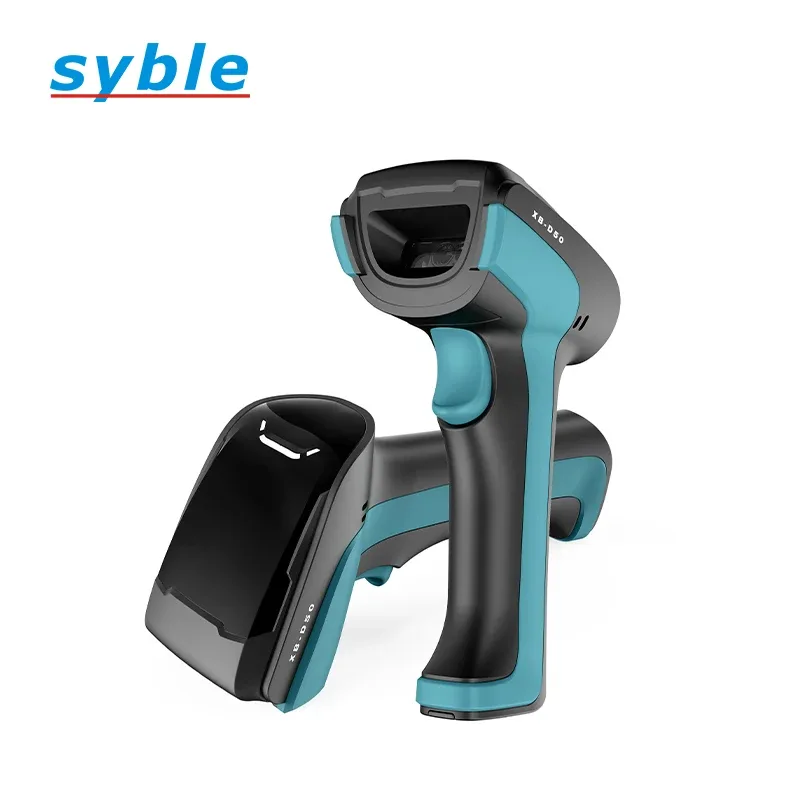

Syble XB-D50 Industrial Wired 2D Barcode Scanner

Product Overview

The Syble XB-D50 is a wired handheld barcode scanner designed for retail, supermarkets, warehouses and other environments that need reliable 1D and 2D barcode reading. It uses an Image CMOS sensor with 1280×800 resolution and scanning performance up to 120 FPS.

Main Uses

• Product barcode scanning at POS counters.
• Warehouse inventory and item tracking.
• Reading QR Code, Data Matrix, PDF417 and other 2D codes.
• Use in environments that benefit from dust and splash resistance.

Key Features

• 1D and 2D barcode support: reads a wide range of common symbologies.
• High-resolution CMOS imaging: 1280×800 resolution.
• Fast scanning: up to 120 FPS.
• Three trigger modes: manual, continuous and automatic induction scanning.
• IP54 protection: dust and splash resistant.
• Drop resistance: withstands repeated 1.5 m drops onto concrete.
• Long reading range: up to 400 mm for specified EAN13 barcodes.
• Plug and Play: designed for straightforward setup.
• Multi-system compatibility: supports Windows, Android and Linux.

Important Technical Specifications

• Model: XB-D50.
• Scanning Principle: Image CMOS.
• Resolution: 1280 × 800.
• Scanning Speed: Up to 120 FPS.
• Light Source: White illumination with green aiming light.
• Trigger Modes: Manual / Continuous / Automatic Induction.
• Minimum Print Contrast: 20%.
• Error Rate: 1/5 million.
• Scan Angle: Yaw ±65°, Rotation 360°, Pitch ±65°.
• EAN13 13mil Range: 55–400 mm.
• Code39 5mil Range: 50–220 mm.
• QR Code 15mil Range: 75–260 mm.
• Code128 20mil Range: 65–190 mm.
• Interfaces: USB-HID / USB-COM / RS232.
• Dimensions: 69 × 83.6 × 173.6 mm.
• Material: ABS + TPU.
• Cable Length: 1.5 m.
• Protection Rating: IP54.
• Working Voltage: DC 5V ±5%.
• Operating Current: 255mA.
• Standby Current: 124mA.

Connectivity and Compatibility

The XB-D50 supports USB-HID, USB-COM and RS232 interfaces and is compatible with Windows, Android and Linux. Manual, continuous and automatic induction scan modes can be selected to match different workflows.

Who Is It Suitable For?

Suitable for retail stores, supermarkets, warehouses, distribution centers and other environments that need a durable wired scanner for reliable 1D and 2D barcode reading.

When Might You Need Another Option?

If your workflow requires cable-free mobility away from the computer or POS terminal, a 2.4G or Bluetooth wireless scanner may be more suitable.

Before You Buy

• Confirm the required interface: USB-HID, USB-COM or RS232.
• Make sure a wired handheld scanner fits the required movement range.
• If reading distance matters, review the published range for your barcode type and size.
• Confirm that your software supports the interface mode you intend to use.
