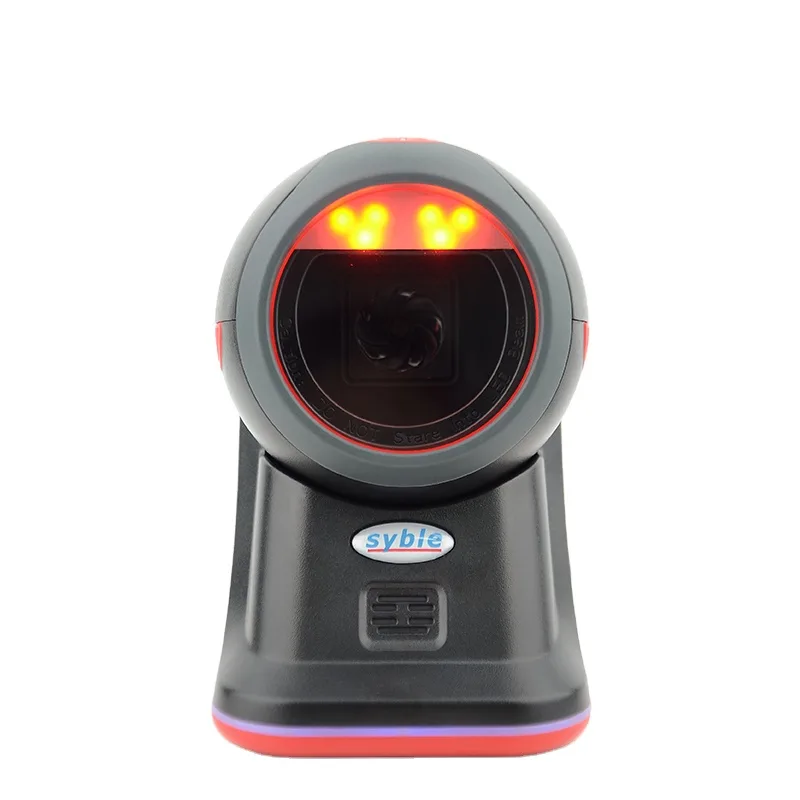

Syble XB-8505 1D/2D Omnidirectional Desktop Barcode Scanner

Product Overview

The Syble XB-8505 is a wired desktop barcode scanner designed to read 1D and 2D barcodes from labels, paper and mobile-device screens. It uses Automatic Induction Scanning and supports omnidirectional reading, making it suitable for POS and checkout environments where products are passed in front of the scanner.

Main Uses

• POS and checkout counters in retail stores and supermarkets.
• Reading product barcodes from labels and paper.
• Reading QR codes and payment codes from phones and tablets.
• Hands-free desktop scanning in retail environments.

Key Features

• 1D and 2D reading: supports a wide range of symbologies including QR Code, Data Matrix and PDF417.
• Omnidirectional reading: helps capture barcodes from multiple orientations.
• Automatic scanning: Automatic Induction Scanning enables hands-free operation.
• Screen-code reading: supports barcodes displayed on phones and tablets.
• 640×480 sensor resolution: for accurate barcode image capture.
• Low error rate: specified at 1 in 5 million.
• Motion tolerance: up to 1 m/s.
• Contrast: 20%.
• Wide recognition angle: turn ±360°, elevation ±65°, declination ±65°.
• Plug and Play: USB Drive-Free connectivity for supported systems.

Important Technical Specifications

• Model: XB-8505.
• Sensor Resolution: 640 × 480 pixels.
• Scan Mode: Automatic Induction Scanning.
• Code 128 5mil Range: 10–80 mm.
• EAN-13 13mil Range: 0–160 mm.
• QR Code 15mil Range: 10–75 mm.
• Code 39 5mil Range: 10–70 mm.
• Motion Tolerance: 1 m/s.
• Contrast: 20%.
• Recognition Angle: Turn ±360°, elevation ±65°, declination ±65°.
• Interfaces: USB (Drive-Free), RS232, USB-COM.
• Dimensions: 96 × 108 × 150 mm.
• Weight: 281 g.
• Material: ABS+PC.
• Cable Length: 1.5 m.
• Working Voltage: DC 5V ±5%.

Connectivity and Compatibility

The Syble XB-8505 supports USB (Drive-Free), RS232 and USB-COM interfaces. The manufacturer states that it can connect via USB to Windows, Linux and Mac systems. It reads both printed and on-screen 1D and 2D barcodes.

Who Is It Suitable For?

Suitable for POS counters, retail stores, supermarkets, pharmacies and other checkout environments that need a fixed desktop scanner for product barcodes, QR codes and mobile payment codes.

When Might You Need Another Option?

If your workflow requires mobility away from the counter or cable-free operation, a 2.4G or Bluetooth wireless scanner may be more appropriate. For fixed checkout use, the XB-8505 desktop format is designed for this workflow.

Before You Buy

• Confirm the required interface: USB, RS232 or USB-COM.
• Make sure a fixed wired desktop scanner matches your workflow.
• If reading distance matters, review the published range for the barcode type and size you use.
• Confirm compatibility between your operating system, POS software and selected interface.
