Syble XB-6221 USB Barcode Reader

Syble XB-6221 USB Barcode Reader

Product Overview

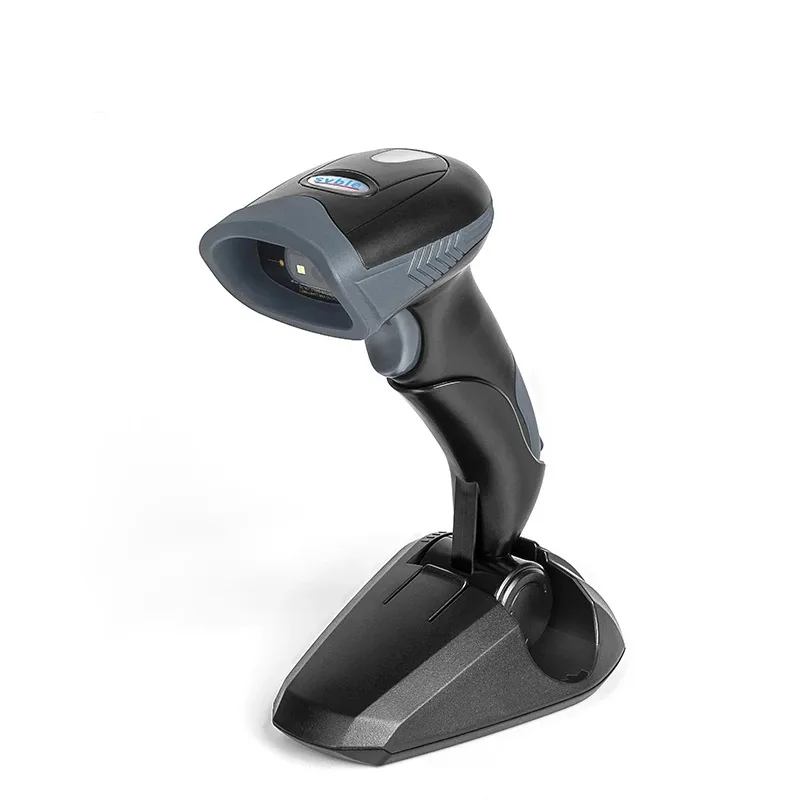

The Syble XB-6221 is a wired 2D barcode scanner based on Image CMOS technology. It reads both 1D and 2D barcodes from paper labels and electronic displays and is intended for POS, warehouse, library, pharmacy and logistics use.

Key Features

• 1D and 2D decoding: supports QR Code, Data Matrix and PDF417 along with common 1D symbologies.
• Screen scanning: reads barcodes displayed on phones and electronic screens.
• Plug and Play: direct USB connection without software or app installation in supported use cases.
• Multiple scan modes: manual, continuous and automatic inductive scanning.
• Interfaces: USB-HID and RS232.
• User indicators: LED and buzzer.

Technical Specifications

• Model: XB-6221.
• Light Source: 617nm LED Aimer, White LED.
• Scan Type: Image CMOS.
• Scan Angle: Yaw 60°, Rotation 360°, Pitch 60°.
• Precision: ≥5mil.
• Depth of Scan Field: 6–250 mm.
• Error Rate: Less than 1/5 million.
• Interfaces: USB-HID and RS232.
• Indicators: LED and buzzer.

Supported Symbologies

1D: Codebar, Code11, Code39, Code93, UPC/EAN, Code128, EAN-128, Interleaved 2 of 5, Matrix 2 of 5, MSI Code, Industrial 2 of 5 and GS1 Databar.

2D: QR Code, Data Matrix and PDF417.

Physical and Environmental

• Dimensions: 79.7 × 69 × 187 mm.
• Weight: 134 g.
• Material: ABS+PC.
• Cable Length: 1.8 m.
• Operating Temperature: -20°C to 60°C.
• Storage Temperature: -40°C to 70°C.
• Relative Humidity: 5% to 95% RH, non-condensing.

Electrical

• Voltage: DC5V ±5%.
• Operating Current: 135mA.

Compatibility

Syble lists compatibility with macOS, Android, Linux and Windows XP, 7, 8 and 10.
