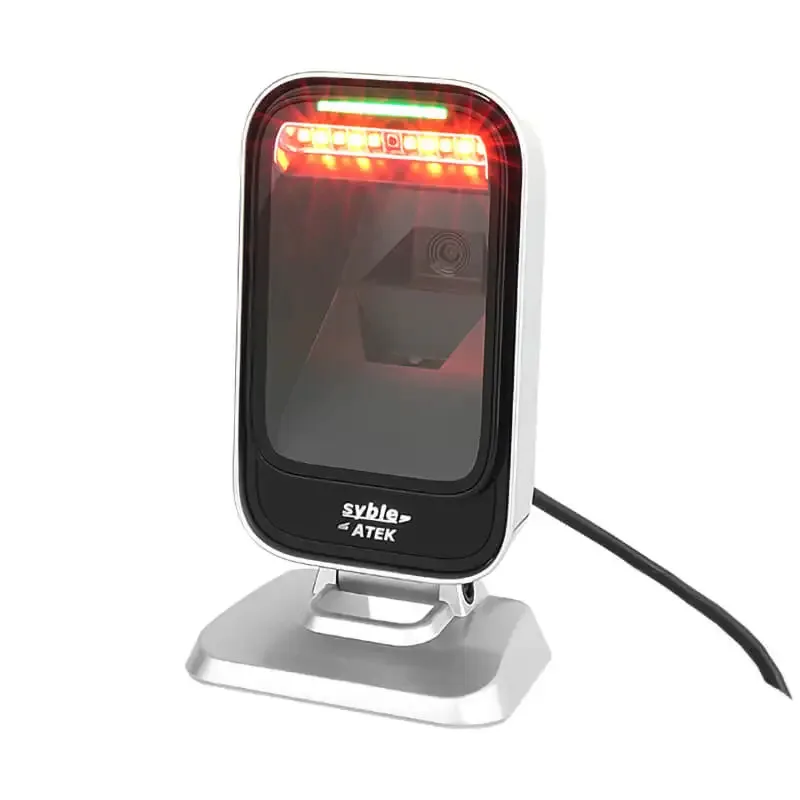

Syble AK-9208H 1D/2D Desktop Barcode Scanner

Product Overview

The Syble AK-9208H is a wired desktop barcode scanner designed for hands-free reading of 1D and 2D barcodes in retail, POS, pharmacy and other checkout environments. It uses a 640×480 image format and supports a wide range of common barcode symbologies, including QR Code, Data Matrix and PDF417.

Main Uses

• POS and checkout counters in retail stores and supermarkets.
• Pharmacies, clothing stores and other retail environments.
• Scanning product barcodes, QR codes and mobile payment codes.
• Hands-free desktop scanning where items are passed in front of the scanner.

Key Features

• 1D and 2D barcode reading: supports a broad range of common symbologies.
• Screen barcode reading: designed to read mobile payment and barcode data displayed on phones.
• 1D-only mode: can switch to reading only 1D codes to help avoid accidentally reading an adjacent 2D code.
• 640×480 image resolution: supports accurate barcode capture.
• Reading range up to 190 mm: specified for EAN13 13mil at PCS=90%.
• Minimum recognition accuracy: Code 128 at 4mil.
• Wide recognition angle: turn ±360°, elevation ±65°, declination ±65°.
• Multi-system compatibility: Linux, Android, Windows XP/7/8/10 and Mac.
• Drop resistance: specified to withstand three 1.5-meter drops onto concrete.

Important Technical Specifications

• Model: AK-9208H.
• Scanner Type: Wired desktop 1D/2D barcode scanner.
• Image: 640 × 480 pixels.
• Scan Mode: Continuous Scanning.
• Scan Range: 0–190 mm for EAN13 13mil, PCS=90%.
• Minimum Recognition Accuracy: Code 128 4mil.
• Recognition Angle: Turn ±360°, elevation ±65°, declination ±65°.
• Interfaces: USB (Drive-Free), RS232, USB-COM.
• Dimensions: 80 × 68.4 × 160 mm.
• Weight: 150 g.
• Material: ABS+PC.
• Cable Length: 180 cm ±3 cm.

Connectivity and Compatibility

The AK-9208H supports USB (Drive-Free), RS232 and USB-COM interfaces and is listed as compatible with Linux, Android, Windows XP/7/8/10 and Mac. It also supports multi-language keyboard output and barcode suffix editing.

Who Is It Suitable For?

Suitable for retail POS counters, supermarkets, pharmacies and clothing stores that need a fixed wired desktop scanner for fast hands-free 1D and 2D barcode reading.

When Might You Need Another Option?

If your workflow requires mobility away from the checkout counter or cable-free warehouse operation, a 2.4G or Bluetooth wireless scanner may be more suitable. For fixed counter use, the AK-9208H desktop format is designed for this type of workflow.

Before You Buy

• Confirm the required interface for your POS system: USB, RS232 or USB-COM.
• Make sure a fixed wired desktop scanner matches your workflow.
• If very small barcodes are important, note the published minimum recognition specification of Code 128 4mil.
• If reading distance is important, the published specification is up to 190 mm for EAN13 13mil under the manufacturer's stated conditions.
