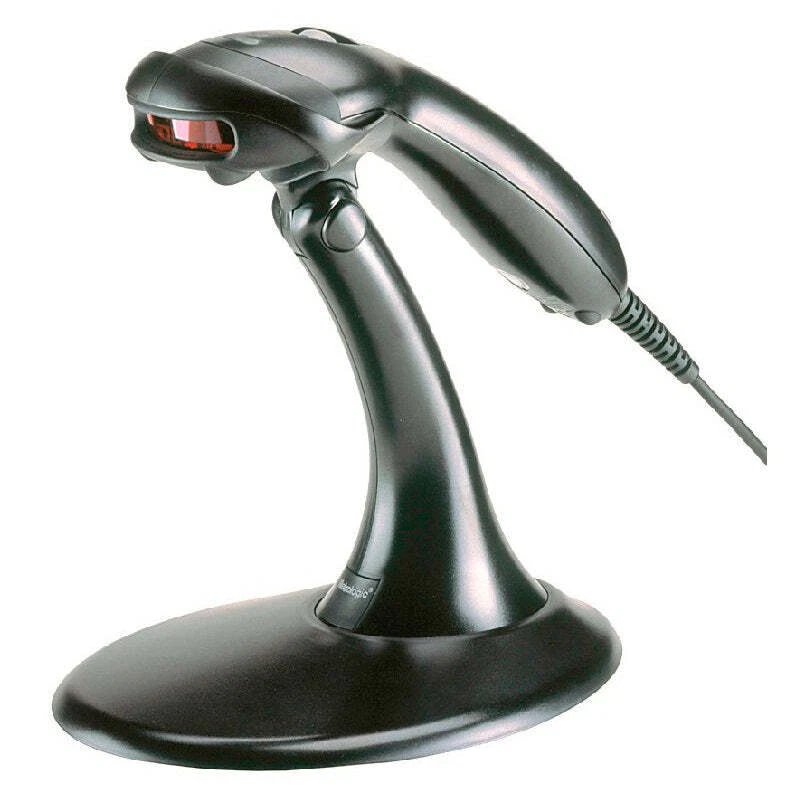

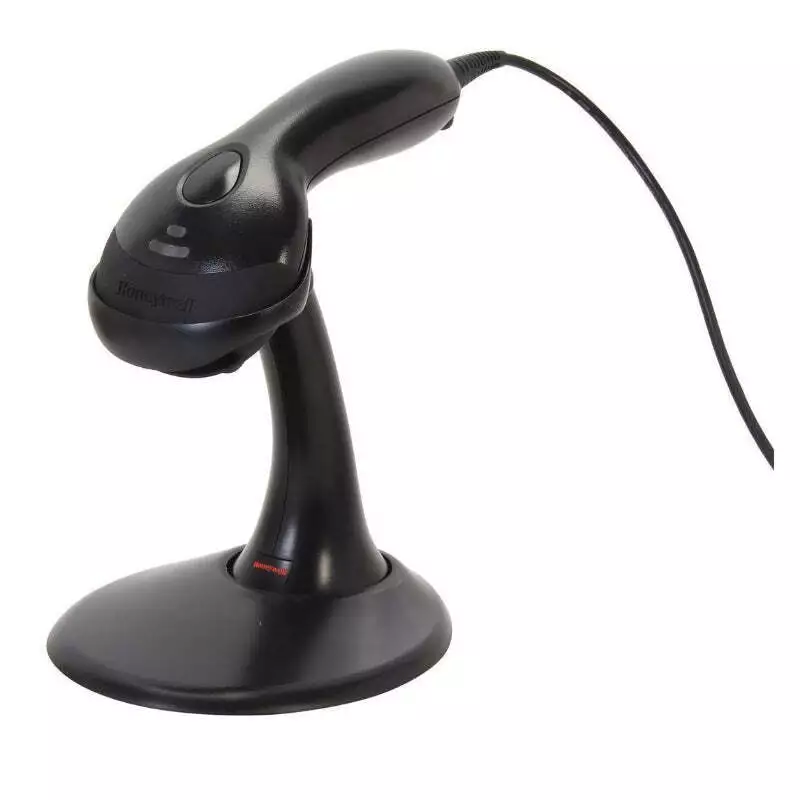

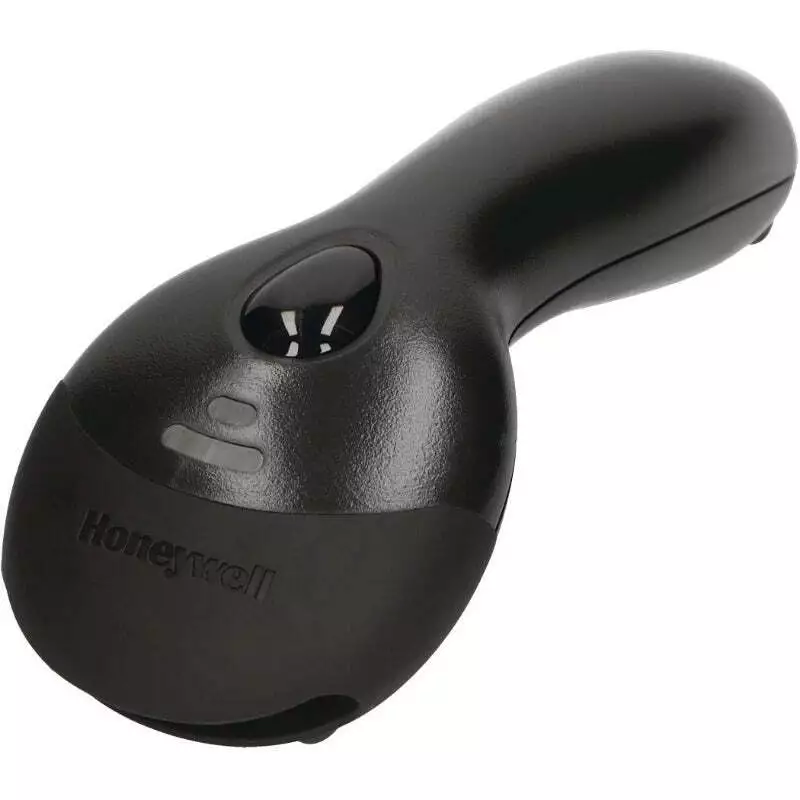

Honeywell MK9540 Voyager Barcode Reader - Automatic Single-Line Laser Scanner

Discover ultimate efficiency and precision with the Honeywell MK9540 Voyager Barcode Reader, a leading 1D scanning solution from Honeywell, a global pioneer in scanning technology. This device is more than just a barcode reader; it's an investment in enhancing your productivity and simplifying daily operations, thanks to its reliable performance and intelligent features designed for your convenience.

The MK9540 Voyager utilizes single-line laser scanning technology, providing fast and dependable reading of all common 1D barcodes. This technology ensures high-accuracy data capture on the first scan, minimizing errors and improving transaction speed. A standout feature is Honeywell's patented CodeGate® technology, which allows users to target the desired barcode before transmitting data. This means you can aim the laser at a barcode, and once confirmed as the correct one, press a button to send the data. This significantly reduces accidental scans, especially in environments with multiple closely spaced barcodes.

The Voyager MK9540 is designed with user comfort in mind, featuring an ergonomic design that is easy to hold and operate for extended periods. The device comes with an integrated stand, allowing for quick transitions between handheld and automatic scanning modes. This offers unparalleled flexibility in various work environments, from busy retail checkout counters to quiet office settings.

As a Honeywell product, the MK9540 Voyager carries the reputation for quality, durability, and innovation. Honeywell is committed to delivering reliable, high-performance solutions that last and efficiently support business operations. This reader exemplifies that commitment, offering exceptional performance trusted by professionals worldwide.

Key Specifications

• Product Name: Honeywell Voyager MK9540 Barcode Scanner

• Model: MK9540

• Scan Pattern: Single Scan Line

• Light Source: 650 nm Visible Laser Diode (VLD)

• Scan Speed: 72 scan lines per second (in automatic mode)

• Minimum Bar Width: 5.0 mil (0.127 mm)

• Interface: Available in USB, RS232, Keyboard Wedge, IBM 468x/469x

  • (Note: The product commonly supports USB; please confirm upon purchase.)

• Depth of Field:

  • 0.5 mm (100% UPC): 0 mm - 203 mm (0 inches - 8 inches)

  • (Varies based on barcode density)

• Special Features:

  • CodeGate®: For automatic scanning and manual transmission confirmation.

  • Manual Scan Mode (trigger activated).

  • Automatic Scan Mode (in stand).

  • Flash ROM: For firmware upgrades.

• Supported Symbologies: All standard 1D barcodes, including:

  • UPC/EAN/JAN, Code 39, Code 39 Full ASCII, Code 39 Trioptic, Code 128, Code 93, Codabar, Interleaved 2 of 5, Discrete 2 of 5, MSI, China Post, RSS variants, GS1 DataBar.

• Dimensions (Scanner only): $198mm\times 78mm\times 40mm$ (Length $\times$ Width $\times$ Height)

• Weight: $149g$

• Casing Material: Durable Plastic

• Operating Temperature: 0∘C to 40∘C

• Storage Temperature: −40∘C to 60∘C

• Humidity: 5% to 95% relative humidity (non-condensing)

• Drop Resistance: Designed to withstand multiple $1.5m$ drops to concrete.

• Power Consumption: $1.0$ W (typical)

• Input Voltage: $5V\text{ DC}\pm 0.25V$
