portable receipt printer xp-501a

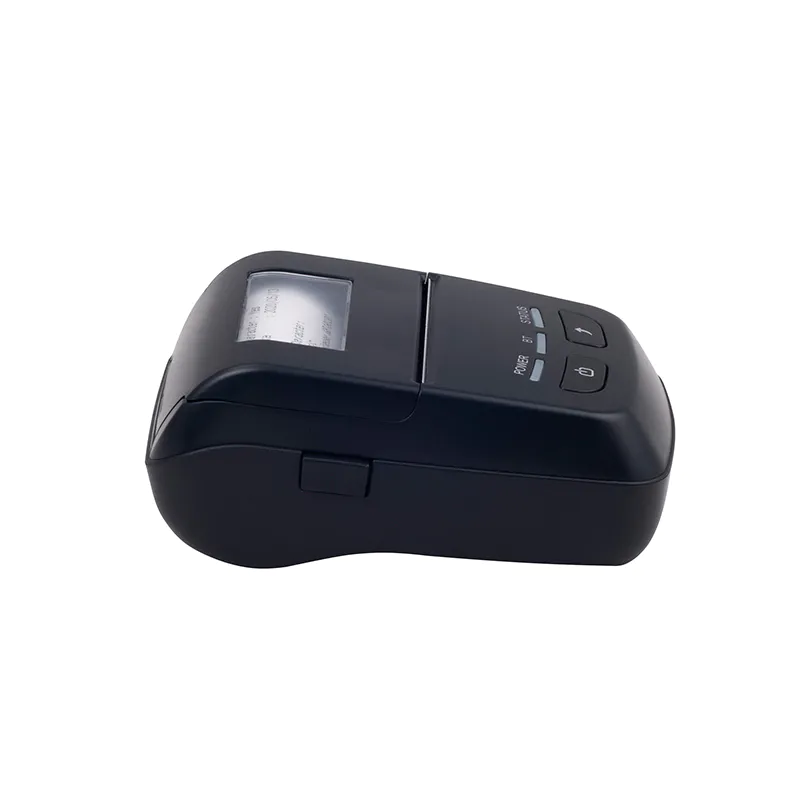

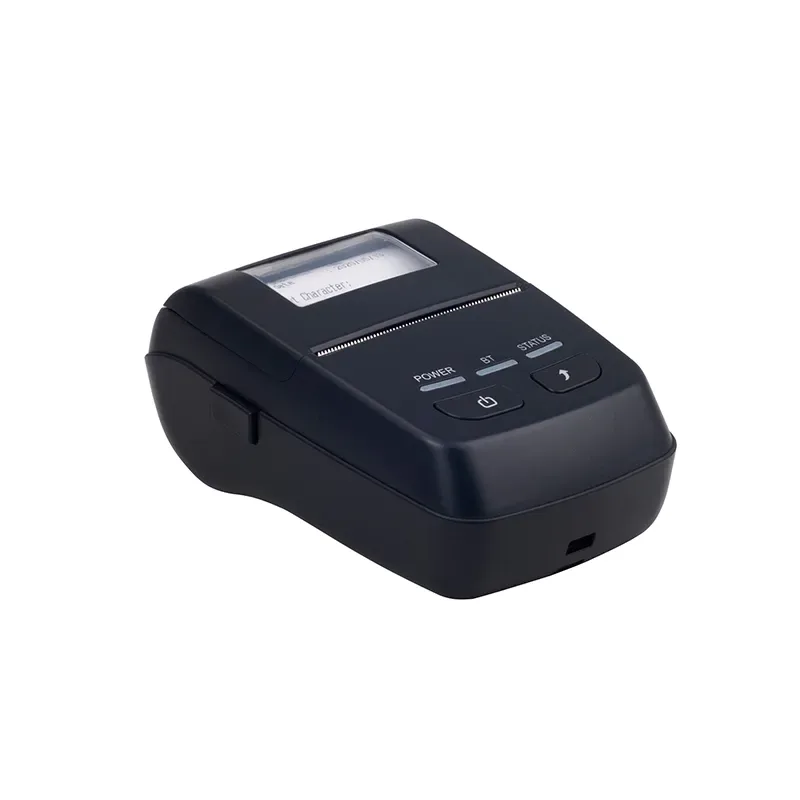

Xprinter XP-501A Portable Receipt Printer

Product Overview

The Xprinter XP-501A is a compact portable direct-thermal receipt printer with 203 DPI resolution and print speeds up to 70 mm/s. It provides a 48 mm print width, USB + Bluetooth connectivity, and a 7.4V 1800mAh battery for mobile use.

Key Features

• Direct thermal printing with no ink or ribbon required.
• 203 DPI resolution.
• Print speed up to 70 mm/s.
• 48 mm print width.
• USB + Bluetooth interface.
• 7.4V / 1800mAh battery.
• DC 5V / 2A charging input.
• ESC/POS emulation.
• Supports 1D barcodes and QR Code.
• Supports 0° / 90° / 180° / 270° print rotation.
• Compatible systems listed: Windows / Android / iOS.
• Paper-out alarm.
• NVLOGO downloaded picture printing support.
• Multiple character sets including Arabic.

Technical Specifications

• Model: XP-501A.
• Printing Method: Direct Thermal.
• Resolution: 203 DPI.
• Line Spacing: 3.75 mm, adjustable by commands.
• Print Width: 48 mm.
• Maximum Print Speed: 70 mm/s.
• Interface: USB + Bluetooth.
• Input Buffer: 6KB.
• NV Flash: 64KB.
• Emulation: ESC/POS.
• Dimensions: 124 × 83 × 51 mm.
• Weight: 0.23 kg.
• Printhead Life: 50 km.
• Battery: 7.4V / 1800mAh.
• Charging Input: DC 5V / 2A.
• Compatible Systems: Windows / Android / iOS.
• Operating Environment: 0 to 45°C, 10%–80% RH, non-condensing.
• Storage Environment: -10 to 60°C, 10%–90% RH, non-condensing.

Supported Barcodes

1D: UPC-A, UPC-E, JAN13 (EAN13), JAN8 (EAN8), CODE39, ITF, CODABAR, CODE93 and CODE128.

2D: QR Code.

Applications and Compatibility

Suitable for mobile receipt printing, POS use, field services, restaurants and retail environments that need a compact printer over Bluetooth or USB.

Who Is It Suitable For?

Suitable for mobile cashiers, delivery services, restaurants, cafes, small POS counters and businesses that need portable receipt printing.

Before You Buy

• Confirm that the 48 mm print width fits your receipt layout.
• Confirm your software supports ESC/POS for direct integration.
• For Bluetooth use, verify that your application and operating system support the intended print workflow.
• The battery capacity is 1800mAh; the official source does not state a fixed runtime, so actual operating time depends on print and connection usage.
• This is a direct-thermal printer and requires compatible thermal paper.
