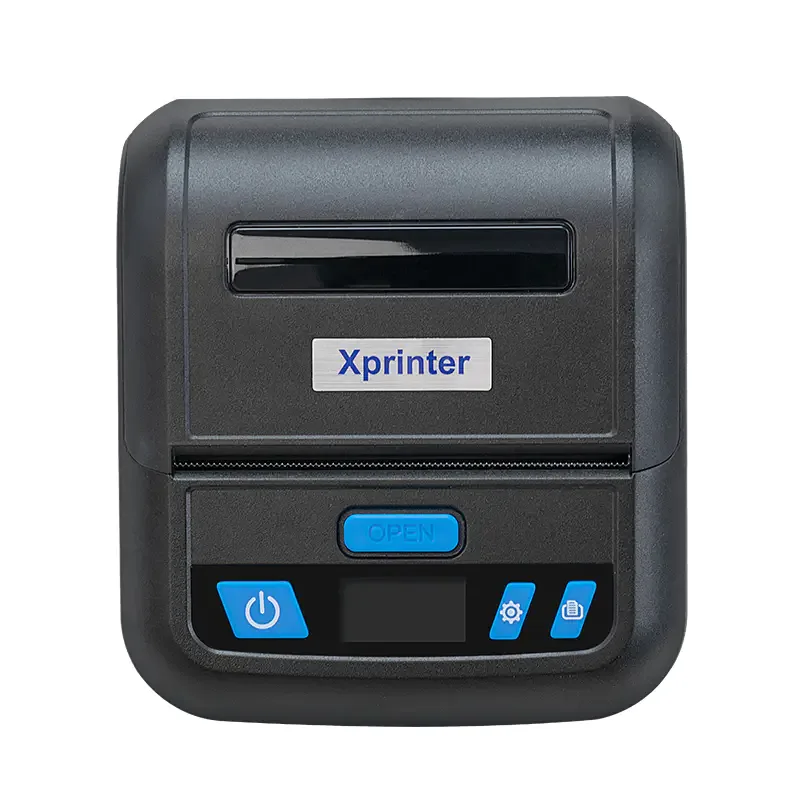

Xprinter XP-P328B Mobile Bluetooth Label & Receipt Printer

Xprinter XP-P328B Mobile Receipt & Label Printer

Product Overview

The Xprinter XP-P328B combines receipt and label printing in a portable direct-thermal printer. It offers 203 DPI resolution, print speeds up to 70 mm/s, 30-80 mm media support, an OLED display and USB + Bluetooth connectivity.

Key Features

• Receipt and label printing: supports continuous, gap and black-mark media.
• 203 DPI resolution: suitable for text, barcodes and labels.
• Print speed: up to 70 mm/s.
• USB + Bluetooth: with USB + Wi-Fi available as an option.
• OLED display: 0.9-inch, 128×64 pixels.
• Rechargeable battery: 7.4V 2000mAh, with 2550mAh available as an option.
• Direct USB charging: for convenient mobile use.
• Adjustable media width: 30 to 80 mm.

Technical Specifications

• Model: XP-P328B.
• Printing Method: Direct Thermal.
• Resolution: 203 DPI.
• Maximum Print Speed: 70 mm/s.
• Maximum Print Width: 72 mm.
• Maximum Print Length: 1016 mm.
• Media Type: Continuous / Gap / Black Mark.
• Media Width: 30-80 mm.
• Media Thickness: 0.06-0.16 mm.
• Maximum Roll Diameter: 50 mm.
• Processor: 32-bit CPU.
• Memory: 8MB Flash + 8MB SDRAM.
• Interface: USB + Bluetooth; USB + Wi-Fi optional.
• Screen: 0.9-inch OLED, 128×64 pixels.
• Sensors: Gap / Cover Open / Black Mark.
• Rotation: 0° / 90° / 180° / 270°.
• Emulation: ESC/POS, TSPL, CPCL; ZPL optional.
• Printhead Life: 30 km.
• Dimensions: 114 × 103 × 59 mm.
• Weight: 360 g.
• Operating Systems: Windows / Android / iOS.
• SDK: Windows / Android / iOS.
• Power Input: AC 100-240V, 0.5A, 50-60Hz.
• Power Output: DC 5V / 2A.
• Battery: 7.4V / 2000mAh; 2550mAh optional.
• Operating Environment: 5 to 40°C, 25% to 85% RH, non-condensing.
• Storage Environment: -40 to 60°C, 10% to 90% RH, non-condensing.

Supported Barcodes

1D: Code 39, Code 93, Code 128UCC, Code 128 A/B/C, Codabar, Interleaved 2 of 5, EAN-8, EAN-13, EAN-128, UPC-A, UPC-E, EAN/UPC 2(5) digits add-on, MSI, PLESSEY, POSTNET and China POST.

2D: PDF417, Maxicode, DataMatrix and QR Code.

Who Is It Suitable For?

Suitable for delivery staff, logistics, warehouses, retail and mobile POS workflows that require portable receipt, label or barcode printing.

Before You Buy

• Confirm that your required media width is between 30 and 80 mm and that the 72 mm maximum print width fits your design.
• The standard interface is USB + Bluetooth; if you need Wi-Fi, confirm the configuration that includes it.
• The standard battery is 2000mAh, with 2550mAh available as an option; confirm the battery capacity in the selected configuration.
• If you specifically require ZPL, confirm that the selected configuration includes it because it is optional.
• The maximum roll diameter is 50 mm and supported media thickness is 0.06-0.16 mm.
• Confirm software compatibility with the interface and command language you intend to use before integration.
